Integrated Command & Control Applications

SafeDispatch

Track And Monitor Mobile Assets And Personnel

SAFEMOBILE

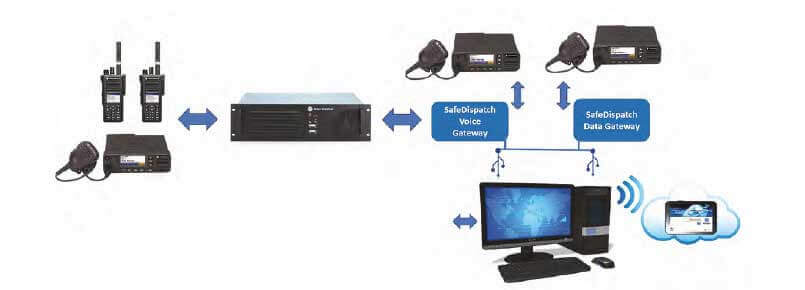

SafeDispatch v7.0 enables our customers to host and manage the entire software application privately, on their own computer. Therefore, no costs are associated with online applications. There are no monthly recurring fees or data charges as seen with other cellular data options, saving customers thousands of dollars annually.

The solution provides a rich graphical user interface in a sleek modern design that is easy for the dispatcher to use, and is enhanced with a variety of location-enabled features that offer real-time 24/7 critical information about your mobile assets around the world, automatically displaying vehicle and unit positions using Google® mapping engines. The modular features make our application the perfect tracking tool for the mobile assets and personnel of any business, in any market.

Key Benefits

  • Client-hosted and managed private network with no monthly fees.
  • Flexible, time saving, efficient control over all field radios in real-time.
  • Streamlined communication and convergence of information through one centralized hub.
  • Supports multiple radio platforms.

Key Features

  • Real-time GPS/AVL via live Google Maps with Speed/ Heading, History, Geofencing/ Landmarks and Emergency Alarms.
  • PTT and VoIP dispatch with call recording and logging.
  • Emergency Alarms, Man Down and Lone Worker.
  • Telemetry: I/O Port Monitoring with Alarms.
  • Job Ticketing: Closed-loop work order management system.
  • Text Messaging and Email gateways.
  • Enhanced Analytics: location-based reports; exportable to email.

System Requirements And Types

  • Radio Hardware/Releases Compatibility:
    • Motorola enhanced radios with color display are required for the Job Ticketing module.
  • Computer Hardware/Operating Systems:
    • Operating System(s) Windows 7 +, Intel® Core i7 Processor (Quad Core, 3.40GHz, 8MB w/HD4000 Graphics), Memory 8GB, 64bit, Multiple Language.
  • IP Technology:
    • In case of Direct Connection to the Repeater the following is needed: (1) IP connection from the Gateway PC to the Master Repeater. (2) To install free of charge MNIS software from the Motorola website (on the PC with the Gateway Software) and (3) To install on each Repeater: NAI Data, NAI Voice.
  • Interfaces:
    • All the PCs in the system must be capable of using UDP multicast.
  • Compatible with IP Site Connect, Conventional, Capacity Plus, Linked Capacity Plus & Connect Plus 1.12 and later.

Industries

Fire and Emergency Medical Services, Healthcare, Hospitality, Mining, Oil & Gas, Police, Public Services (non-Public Safety Government), Transportation, Utilities.

Application Partner

Motorola Application Partner


SafeNet

Track And Monitor Mobile Assets And Personnel

SAFEMOBILE

SafeNet™ is very easy to use. Just click and enjoy the benefits that this application brings to your organization. Features include GPS Tracking with Google Maps, Historical Playback, Enhanced Reporting, Email and Unlimited Text Messaging. Subscribers log into a customized web page designated to their specific needs.

SafeMobile hosts, maintains and manages the site. We configure your system, install and test on the spot, to ensure everything is working properly to provide peace of mind. All updates and enhancements are provided automatically via web updates and are included in your annual maintenance package.

Key Benefits

  • Web-based Solution with Smart Phone Capabilities.
  • Customizable Interface.
  • Integrates with Existing Radio System.
  • Affordable Monthly Fee.
  • Increased Field Personnel Safety.
  • Improved Field Communications.
  • Access Critical Fleet Information.
  • Supports Capacity Plus, Conventional, IP Site Connect & Connect Plus.
  • Enhanced Emergency Response Communications.
  • Automatic Updates & Enhancements.

Key Features

  • GPS/AVL: Real-time GPS using live Google Maps, Speed and Heading, Historical playback, Geofencing, Landmarks and Emergency Notifications.
  • Emergency Alarms.
  • Text Messaging: Text Communication between radios and dispatchers with individual and group messaging.
  • Email: Send and receive emails between radios and any computer; receive alarm notifications to designated email addresses.
  • Enhanced Reporting: Multiple location-based reports preset to provide essential analytics of your subscribers; exportable and emailable.

SafeNet Application

System Requirements And Types

  • Radio Hardware/Releases Compatibility:
    • MOTOTRBO™ 1.4.
  • Computer Hardware/Operating Systems:
    • Microsoft Windows 7, 8, 10 CPU: Intel/AMD 1600 MHz or greater, RAM: 1.0 Gb or greater, Hard Drive: 40.0GB or greater, Ethernet Card: 10/100 LAN, USB: USB 2.0
  • IP Technology:
    • High Speed Internet
  • Interfaces:
    • TCP/IP connectivity (LAN,WLAN,VPN)
  • Compatible with IP Site Connect, Conventional, Capacity Plus, Linked Capacity Plus & Connect Plus 1.12 and above.

Industries

Fire and Emergency Medical Services, Healthcare, Hospitality, Mining, Oil & Gas, Police, Public Services (non-Public Safety Government), Transportation, Utilities.

Application Partner

Motorola Application Partner


SmartPTT Basic

MOTOTRBO Voice & Data Dispatch Software

ELCOMPLUS

SmartPTT Basic is a dispatch software application for small to mid-sized MOTOTRBO radio systems. Functionalities include voice dispatch, GPS tracking, texting, job ticketing, voice recording, event log and more. Optional features include telephone interconnect and a web client for remote system access.

SmartPTT supports both the digital functions of the MOTOTRBO radios or their analog mode for a seamless migration to a DMR system.

SmartPTT Dispatcher Console is the software application installed on a Windows-based PC, which can be located at any distance from the controlled radio networks. The Dispatcher Console connects to the SmartPTT Radioserver(s) via IP to perform dispatching functions. The SmartPTT Basic Radioserver communicates to radio subscribers through control stations (MOTOTRBO mobile radios), connected by USB and audio cables.

Key Benefits

  • Enhanced radio subscriber monitoring and management.
  • Increased coordination of work.
  • Personnel safety.
  • Rapid response to emergency.
  • Improved performance discipline of employees.
  • Cost management.
  • Elimination of data transmission errors.
  • Increased call capacity.

Key Features

  • Voice Dispatch.
  • GPS Tracking.
  • Event Logging.
  • Voice Recording.
  • Text and Data Transfer.
  • Job Ticketing.
  • Telemetry.
  • Web Client Option.
  • Telephone Interconnect Option.

SmartPTT Basic Application

System Requirements And Types

  • Radio Hardware/Releases Compatibility:.
    • MOTOTRBO radio with firmware 1.08.32 or higher.
    • XPR and SL series with firmware version R02.00.00 or higher.
  • Computer Hardware / Operating Systems:.
    • PC, Windows XP/Server 2008/Vista/Windows 7/ Windows 10, Intel Core i5 or higher, no less than 4 Gb RAM, Sound card (for connecting multiple channels, for example, M-AudioDelta 1010 LT), HDD recommended min 12 Gb (depends on volume of voice records).
  • Interfaces:
    • Ethernet.

Industries

Fire and Emergency Medical Services, Healthcare, Hospitality, National Government Security, Police, Transportation & Logistics, Utilities.

Application Partner

Motorola Application Partner


SmartPTT Enterprise

MOTOTRBO Voice & Data Dispatch Software

ELCOMPLUS

SmartPTT Enterprise is a dispatch software application for distributed MOTOTRBO radio networks. Included functionalities include voice dispatch, GPS tracking, texting, job ticketing, voice recording, event logging and more. Optional features include interoperability, telephone interconnect, indoor location and a web client and mobile application for remote system access.

SmartPTT supports both the digital functions of the MOTOTRBO radios or their analog mode for a seamless migration to a DMR system.

SmartPTT Dispatcher Console is the software application installed on a Windows-based PC, which can be located at any distance from the controlled radio networks. The Dispatcher Console connects to the SmartPTT Radioserver(s) via IP to perform dispatching functions. The SmartPTT Enterprise Radioserver communicates to radio subscribers via IP (conventional repeaters and IPSC) or through a combination of IP and control stations connected by USB and audio cables (Capacity Plus, LCP and Connect Plus).

Key Benefits

  • Enhanced radio subscriber monitoring and management.
  • Increased coordination of work.
  • Personnel safety.
  • Rapid response to emergency.
  • Improved performance discipline of employees.
  • Cost management.
  • Elimination of data transmission errors.
  • Increased call capacity.
  • MOTOTRBO Network Application Interface for Data (NAI-D) for ARS, GPS, Text Messaging, and Telemetry.
  • Radio Network Bridging breaks the IPSC limit of 15 repeaters per system.

Key Features

  • Voice Dispatch.
  • GPS Tracking.
  • Event Logging.
  • Voice Recording.
  • Text and Data Transfer.
  • Job Ticketing.
  • Telemetry.
  • Direct IP Connection.
  • Mobile Application Option.
  • Web Client Option.
  • Indoor Tracking Option.
  • Radio Network Bridging Option.
  • Repeater Network Monitoring Option.
  • Telephone Interconnect Option.

SmartPTT Enterprise Application

System Requirements And Types

  • Radio Hardware/Releases Compatibility:.
    • MOTOTRBO radio with firmware 1.08.32 or higher.
    • DGM, DGP and SL series with firmware version R02.00.00 or higher.
  • Computer Hardware / Operating Systems:.
    • PC, Windows XP/Server 2008/Vista/Windows 7/ Windows 10, Intel Core i5 or higher, no less than 4 Gb RAM, Sound card (for connecting multiple channels, for example, M-AudioDelta 1010 LT), HDD recommended min 12 Gb (depends on volume of voice records).
  • Interfaces:
    • Ethernet.
  • Compatible with IP Site Connect, Capacity Plus, Linked Capacity Plus 2.0 and above. Also, Connect Plus 1.4 and above.

Industries

Fire and Emergency Medical Services, Hospitality, National Government Security, Police, Transportation & Logistics, Utilities.

Application Partner

Motorola Application Partner


SMC Gateway

Connecting Anything To Everything

SOUTH MIDLANDS COMMUNICATIONS LTD

The SMC Gateway is a versatile appliance that enables system integrators to build customer focused solutions without the need to install PCs and expensive software. It connects digital radio networks, and other devices, to many external systems. Providing alarm management, lone worker monitoring, call recording, GPS tracking and more.

Key Benefits

  • Easily customizable, making system changes quick and economic.
  • Enables automation of systems, making personnel more effective.
  • Lone worker actively monitors vulnerable personnel increasing their safety.
  • Allows easy integration into multiple systems via common protocols, such as XML, JSON, UDP, TCP, Serial, etc.
  • Small form factor reduces required space and cost.
  • Voice recording.
  • GPS tracking.
  • Customizable user interface for individual customers.
  • Easily deployable and scalable.
  • Radio network bridging.
  • SMS Cellular integration.
  • No additional licences needed.
  • No limit on subscribers or users.
  • RSSI Measurements.
  • Emergency handling.
  • All features can operate simultaneously from one appliance.

Key Features

Each gateway is capable of multiple, simultaneous functions, including but not limited to:

  • Text messaging to and from radio systems.
  • Ability to connect to most fire/intruder/BMS systems.
  • Email using SMTP & POP services.
  • Radio registration events (ARS).
  • Alert calls.
  • GSM Text messaging via USB GSM Dongle.
  • Voltage monitoring via the power input (9-15V DC).
  • Third party connectivity via TCP/UDP sockets, HTTP requests/posts, external databases and more Internet of Things “IoT” integration.

SMC Gateway Application

System Requirements And Types

  • Radio Hardware/Releases Compatibility:
    • MOTOTRBO XPR4000 series or XPR7000 series mobile with USB lead.
  • Computer Hardware/Operating Systems.
    • Not required, but supports all Windows, Apple & Linux operating systems, mobile phones and tablets via any modern web browser.
  • IP Technology:.
    • Not required, but supports HTTP, TCP/IP, UDP/IP, REST API, XML, JSON.
  • Interfaces:
    • None required, but provides USB for external mass storage, RJ45 Network, and optionally 2 relay outputs and up to 9 digital inputs.
  • Compatible with IP Site Connect, Capacity Plus, Linked Capacity Plus and Connect Plus.

Industries

Healthcare, Hospitality, Police, Retail.

Application Partner

Motorola Application Partner


StreetTrek Location And Messaging Servers

Making Your MOTOTRBO Digital Radios Work Smarter

COMTRAN ASSOCIATES INC.

StreetTrek Location and Messaging Servers, IPSC Location and Messaging Servers and Location and Messaging Server for Connect Plus enable GPS tracking of mobile and portable assets, email and text messaging to personnel by acquiring data from Motorola MOTOTRBO Professional Digital Two-Way Radio Systems.

Key Benefits

  • Keep your fleet or other mobile assets at your fingertips 24/7.
  • Receive real-time information from MOTOTRBO radio systems.
  • Improve communication by enabling email and text messaging with personnel.

Key Features

  • Acquire MOTOTRBO GPS location data for use with StreetTrek mapping solutions.
  • Keep a record of all inbound & outbound messages.
  • Runs as a Windows Service or as a graphic user interface (GUI).
  • Text Messaging & Email Options Available.
  • Voice Recording & MultiSpeak Options Available.

System Requirements And Types

  • Radio Hardware/Releases Compatibility:
    • MOTOTRBO control stations may be necessary if you are not using a repeater or if a network connection to the repeater system is not available.
  • Computer Hardware/Operating Systems.
    • Windows 10 Professional 64 Bit, Windows 8.1 Professional 64 Bit, Windows 7 Professional 64 Bit or Windows Server 2012 (Preferred) with 1 administrator login, Dot Net Framework 4.0 or higher, 4 GB Ram, 250 GB Hard Drive, MS SQL Express Server 2014 or higher.
  • IP Technology:.
    • Connection to StreetTrek Location and Messaging Server Software can be established across a network or through the internet.
  • Compatible with Standalone, IP Site Connect, Capacity Plus, Linked Capacity Plus and Connect Plus.

Industries

Fire & Emergency Medical Services, Healthcare, Hospitality, Mining, Oil & Gas, National Government Security, Police, Public Services (non-Public Safety Government), Retail, Transportation & Logistics, Utilities.

Application Partner

Motorola Application Partner




» Request a Quote


The team at Datatronics, Inc. can help you with a quote on purchasing two way radios or installing a large system.

Please contact us today.
